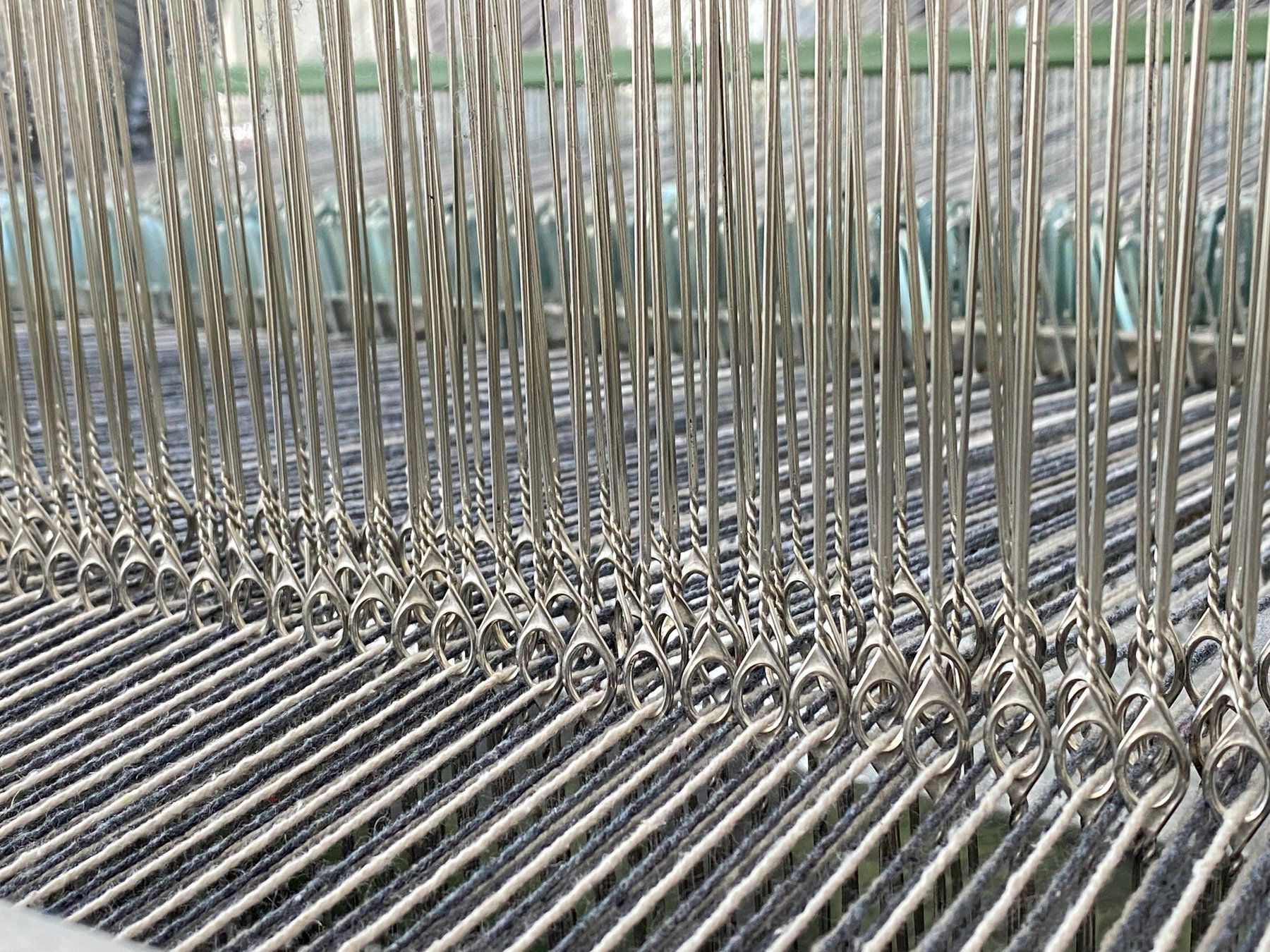

Heddles and springs
Spring heddles for velvet, terry, satin, label and narrow-fabric jacquards, and frame heddles for dobby and cam looms. We make them in our Istanbul workshop to your loom’s measurements.
Message us on WhatsApp

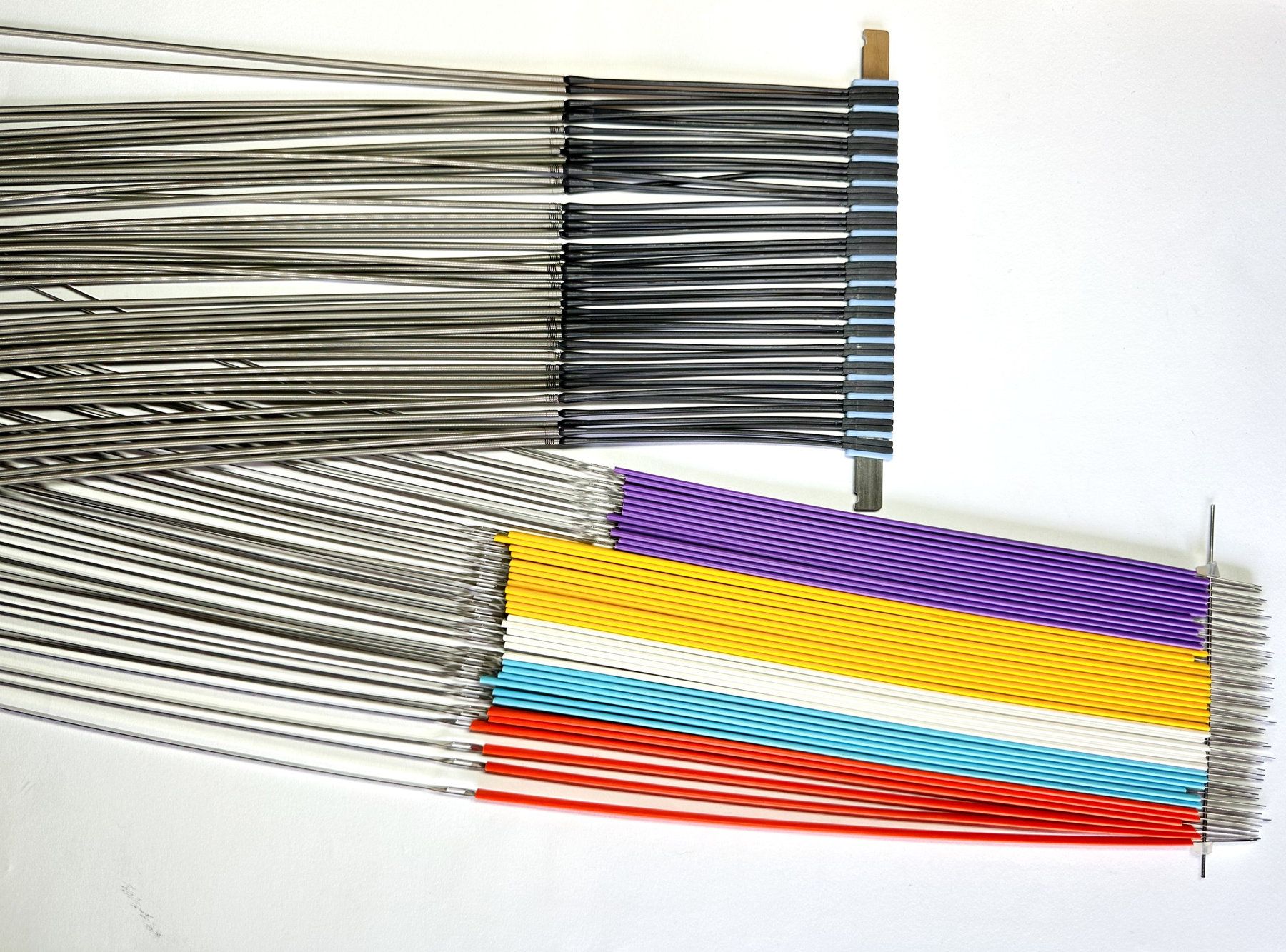

Velvet steel heddle
Full steel body for velvet, carpet and prayer-rug jacquards. Colour-coded ends by row.
Ask about this
Terry heddle 355R
Spring heddle for terry towel jacquards.
Ask about this
Jacquard spring heddle
For label, satin and upholstery weaving. Spring length and tension chosen per job.
Ask about this

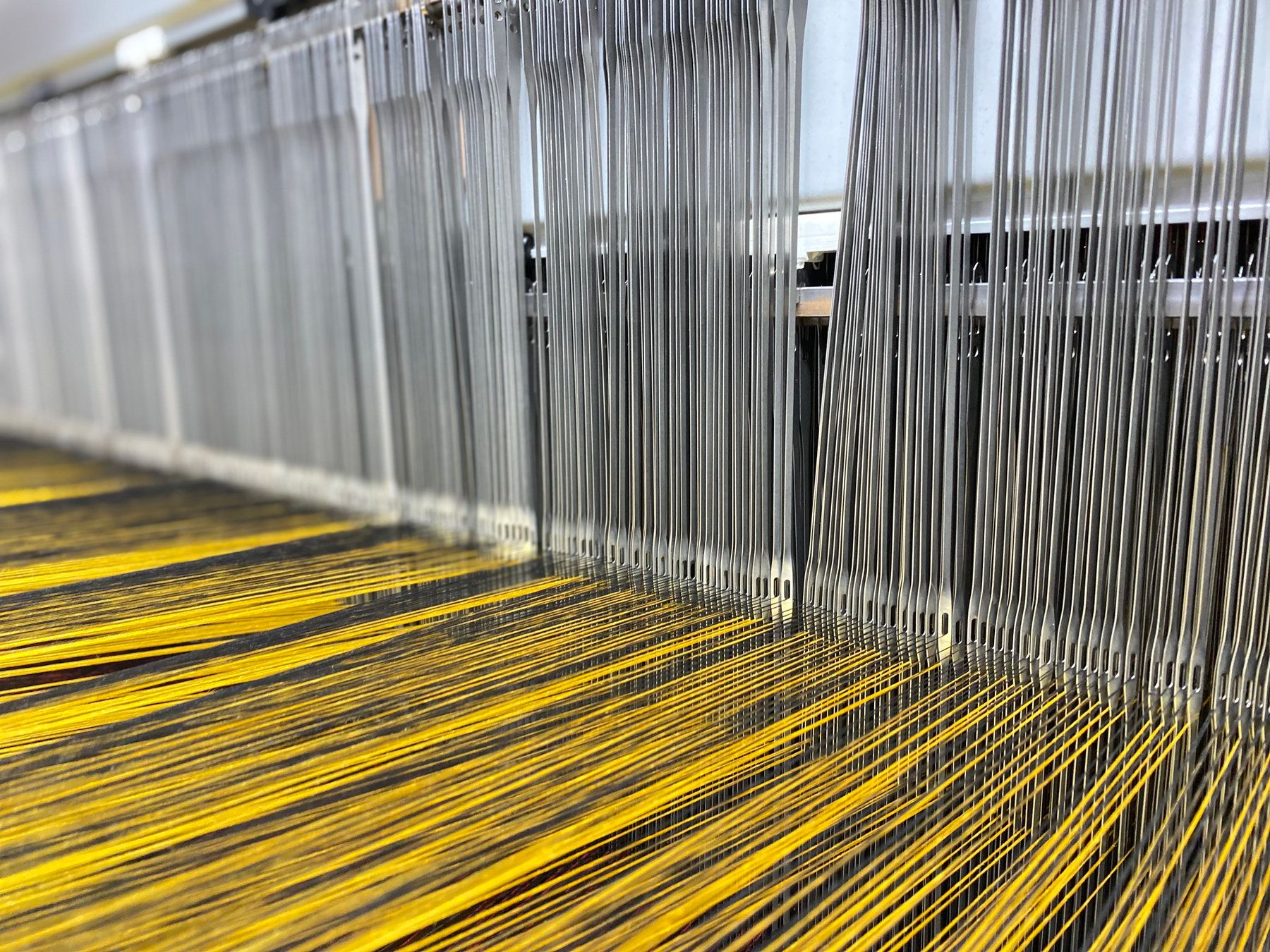

Frame heddle
For heald frames: 520, 580 and 620 mm.
Ask about this

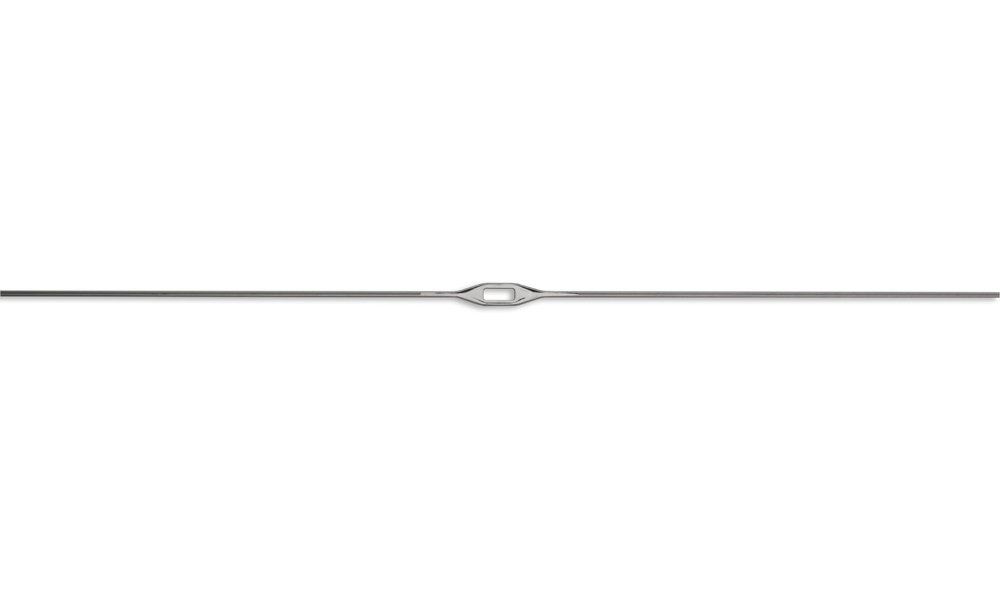

Square-eye heddle
Heddle with a square eye.
Ask about this

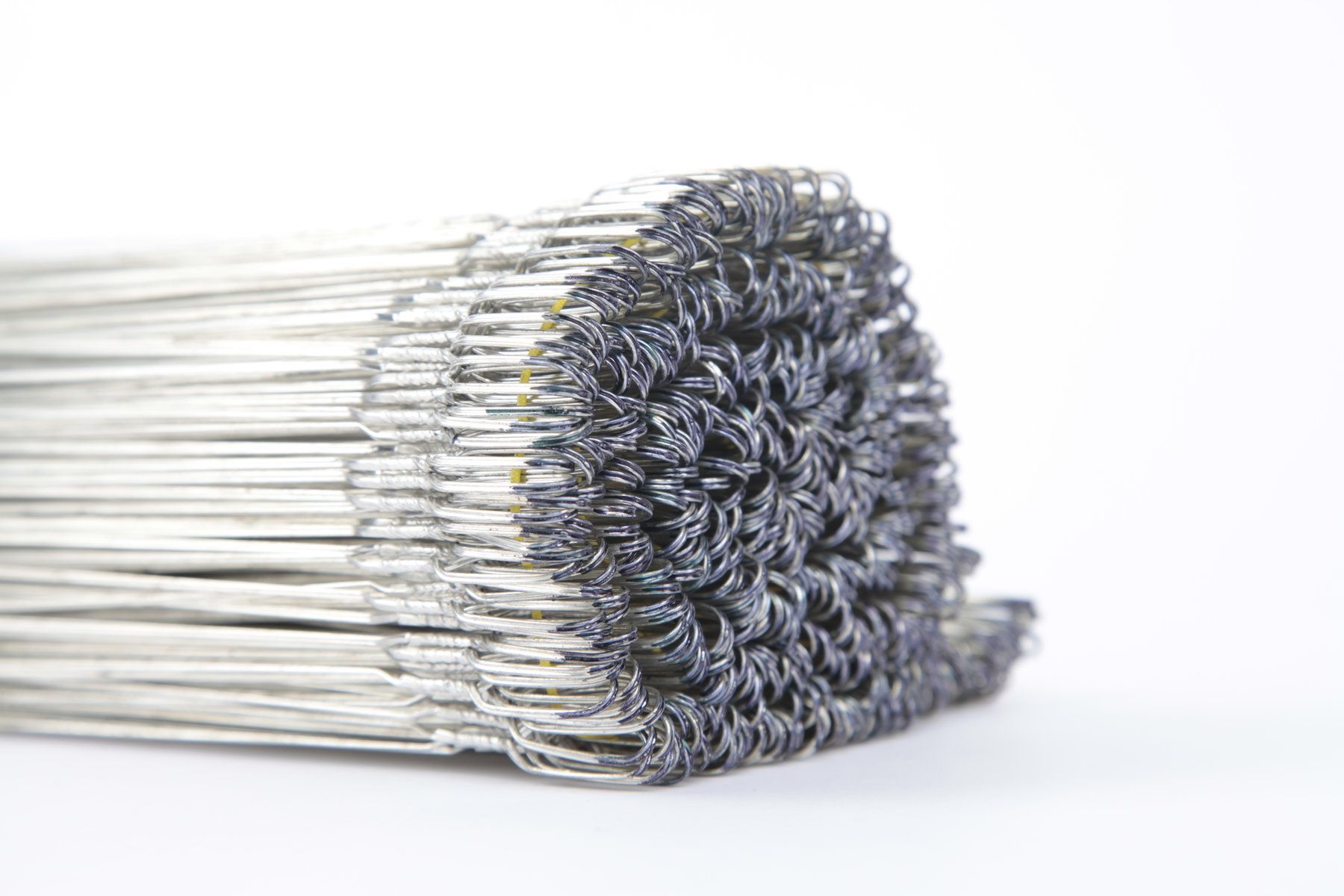

Jacquard spring
Example: 1020R — eye 4.0 × 1.5 mm, spring length 24 cm, tension 60 g.
Ask about this
Sizes and options
Other sizes can be made to suit your loom. If it is not listed, ask us. Full product list →
Jacquard wire heddle
520 × 0.50 mm · eye 1020R · eye offset up (220/300), offset down (300/220) or centre (260/260) · plain or twisted · lance-end and tin-plated options
AskJacquard wire heddle 580
580 × 0.50 mm · eye 328 · centre · twisted
AskJacquard steel heddle (velvet)
520 mm centre (260/260) standard · 580 × 0.40 mm (290/290)
AskWire heddle 350
350 × 0.40 mm · eye 1080R or 355R (terry) · 18 mm Lancia lance end · nickel-plated option
AskLabel wire heddle
400 × 0.40 mm · eye 312SR (150/250) · 18 mm Lancia lance end · with tube
AskComplete spring heddle
312SR square eye · length 330 mm · spring 25 cm, 60 g
AskLabel heddle
22 cm · 26 cm with hook
AskTerry heddle 355R · square-eye heddle
Spring heddle for terry jacquards; square-eye heddle
AskSpring leno heddle · selvedge heddle
For leno and selvedge weaving
AskFrame wire heddle
520 × 0.50 mm · eye 328R or 1020R · top, offset up (220/300) or offset down (300/220) · plain or twisted · tin-plated option · also 580 and 620 mm
AskSteel frame heddle
Offset up (220/300) · offset down (300/220)
AskJacquard spring
Length and tension to suit the loom; e.g. 1020R: eye 4.0 × 1.5 mm, spring 24 cm, 60 g
AskSpring wire
0.28 · 0.30 · 0.50 mm
AskTube
Narrow 14.5 · round 20 and 24 cm, 2.1 mm bore (for fine harness cord; red, green) · flat 24.5 (white)
Ask

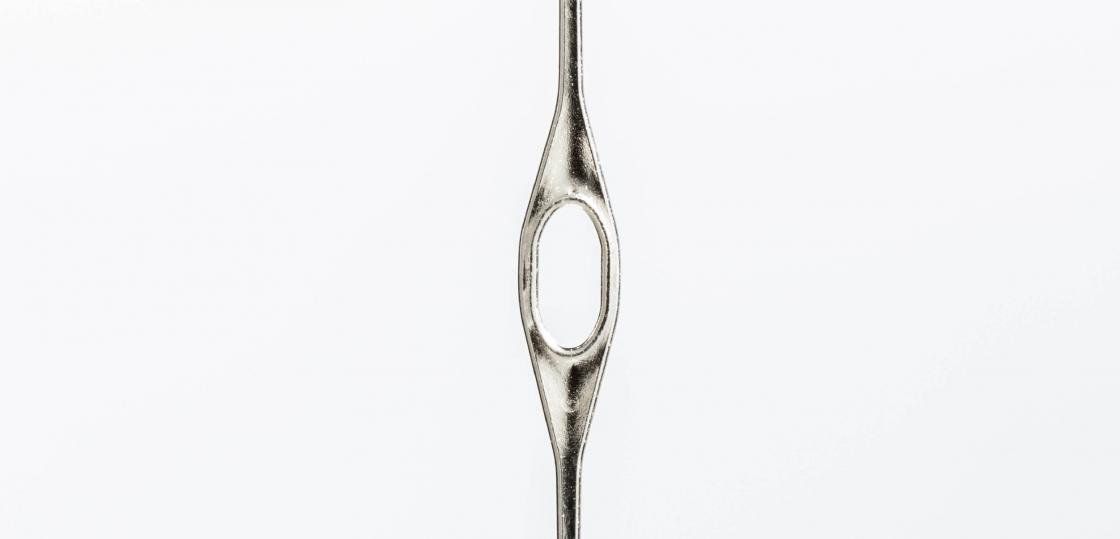

Warp breaks usually start at the eye
Every warp end runs through a heddle eye. A rough or badly formed eye rubs the yarn on every pick until it breaks. We check eye shape and finish on every batch.
How long should the heddle be?
Heddle length depends on the loom and the height of the harness. The safest way is to measure a working old heddle end to end, or send us a photo. For heald frames, frame heddles come in 520, 580 and 620 mm.
Read the article →How many grams of spring tension?
The length and tension of the spring that pulls the heddle down decide how cleanly the shed closes. Too weak, and the heddle won’t return; too strong, and the jacquard and cords carry extra load. Example: the 1020R has a 4.0 × 1.5 mm eye, a 24 cm spring and 60 g tension. The right value depends on the fabric and the jacquard.
I don’t know the size of the old part.
Send a photo. We’ll pin down the size together and make a sample if needed.
Can I get a sample?
Yes. If needed we make a sample first; you try it on the loom and we start the order once you approve.
Renewing the whole harness? We’ll propose heddles, springs, pulleys and cord together for your loom.
Get a harness proposal →Put these in your message
Missing something is fine — a photo is often enough. We will ask for the rest.
Message us on WhatsApp- Loom and jacquard make and model
- Fabric type (velvet, terry, label…)
- Heddle length and eye size — or a photo of the old heddle
- Spring length and tension
- Quantity
