Product catalogue

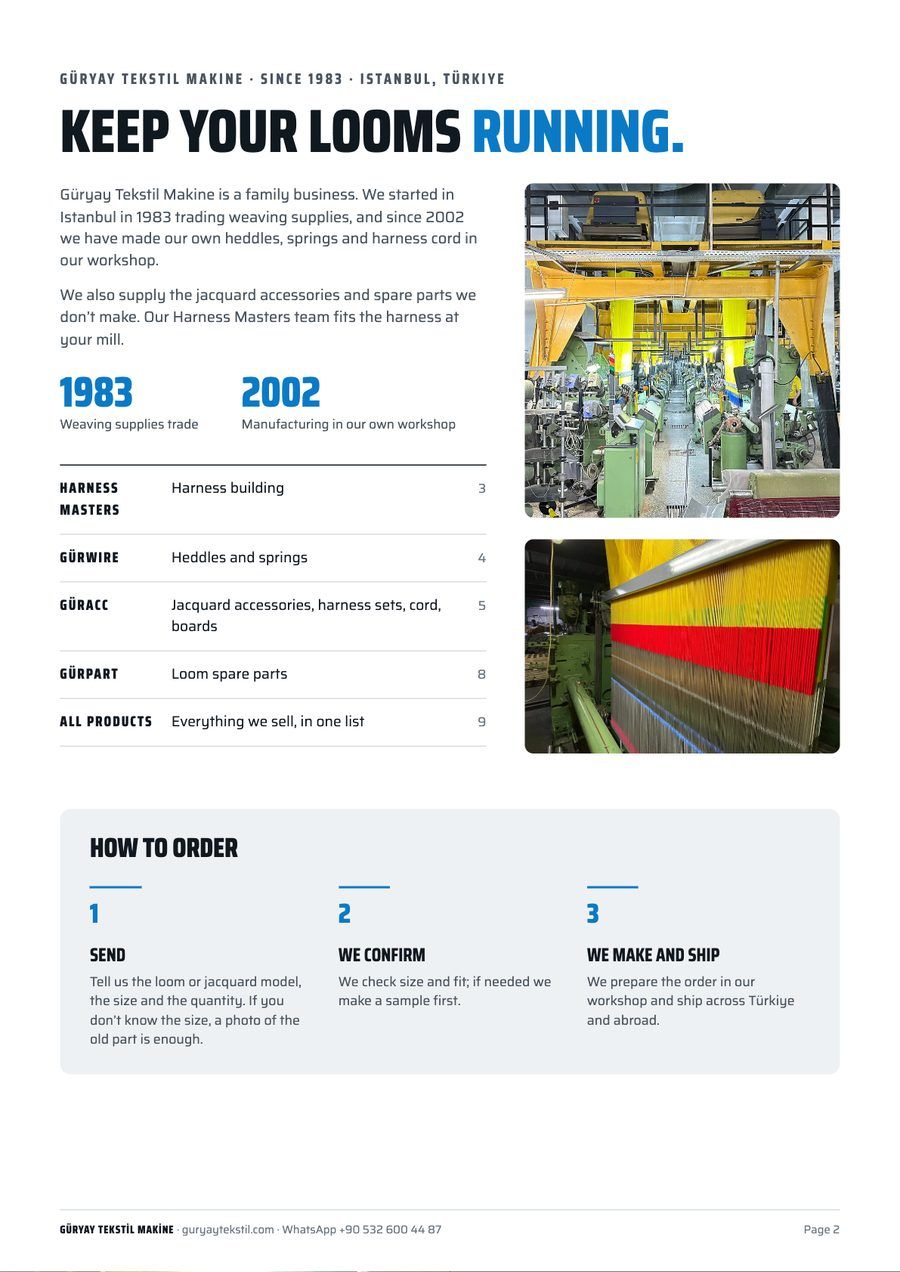

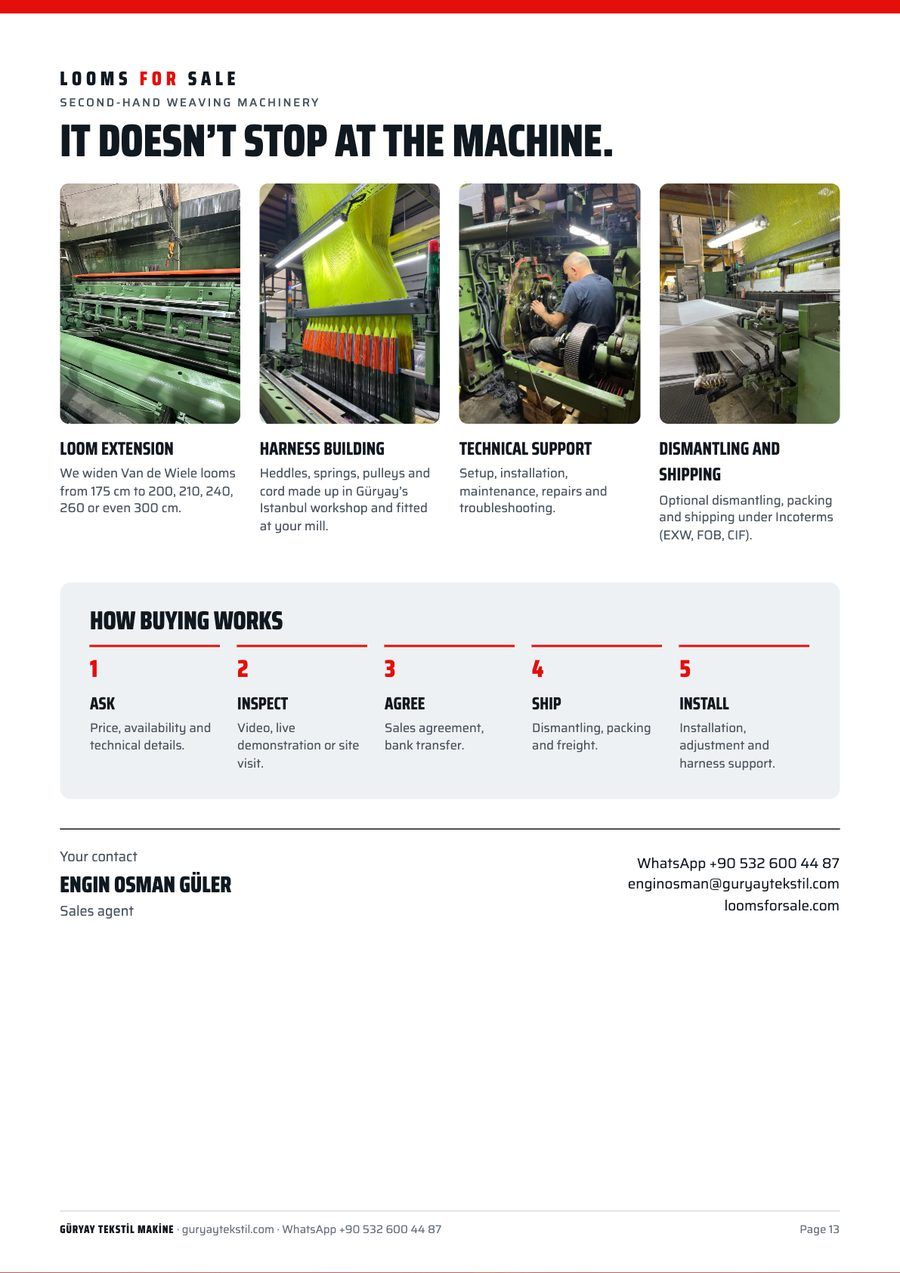

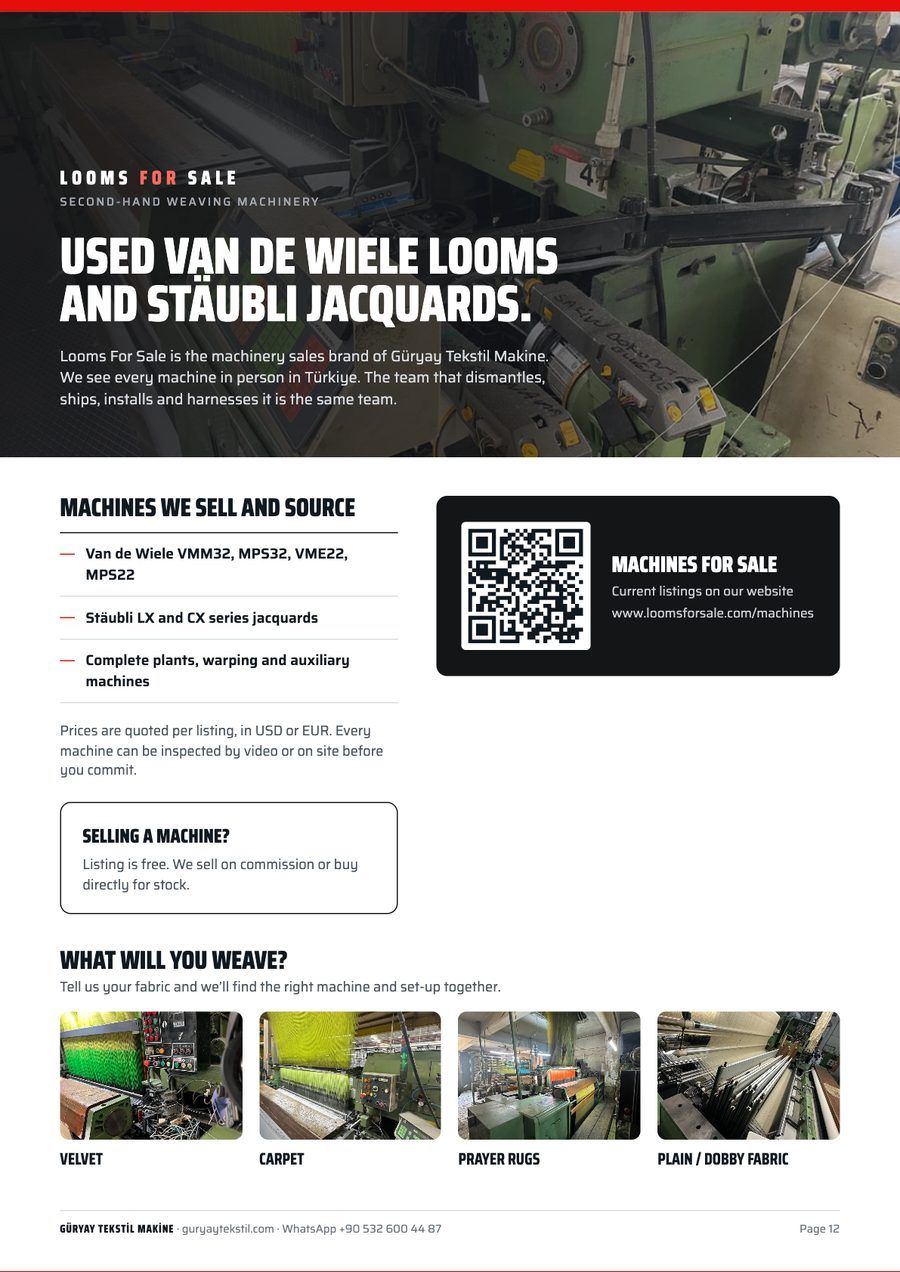

Our harness building service, our GÜRWIRE, GÜRACC and GÜRPART products, a list of everything we sell, an order sheet and our machinery brand Looms For Sale in one file. Print it or share it on WhatsApp.

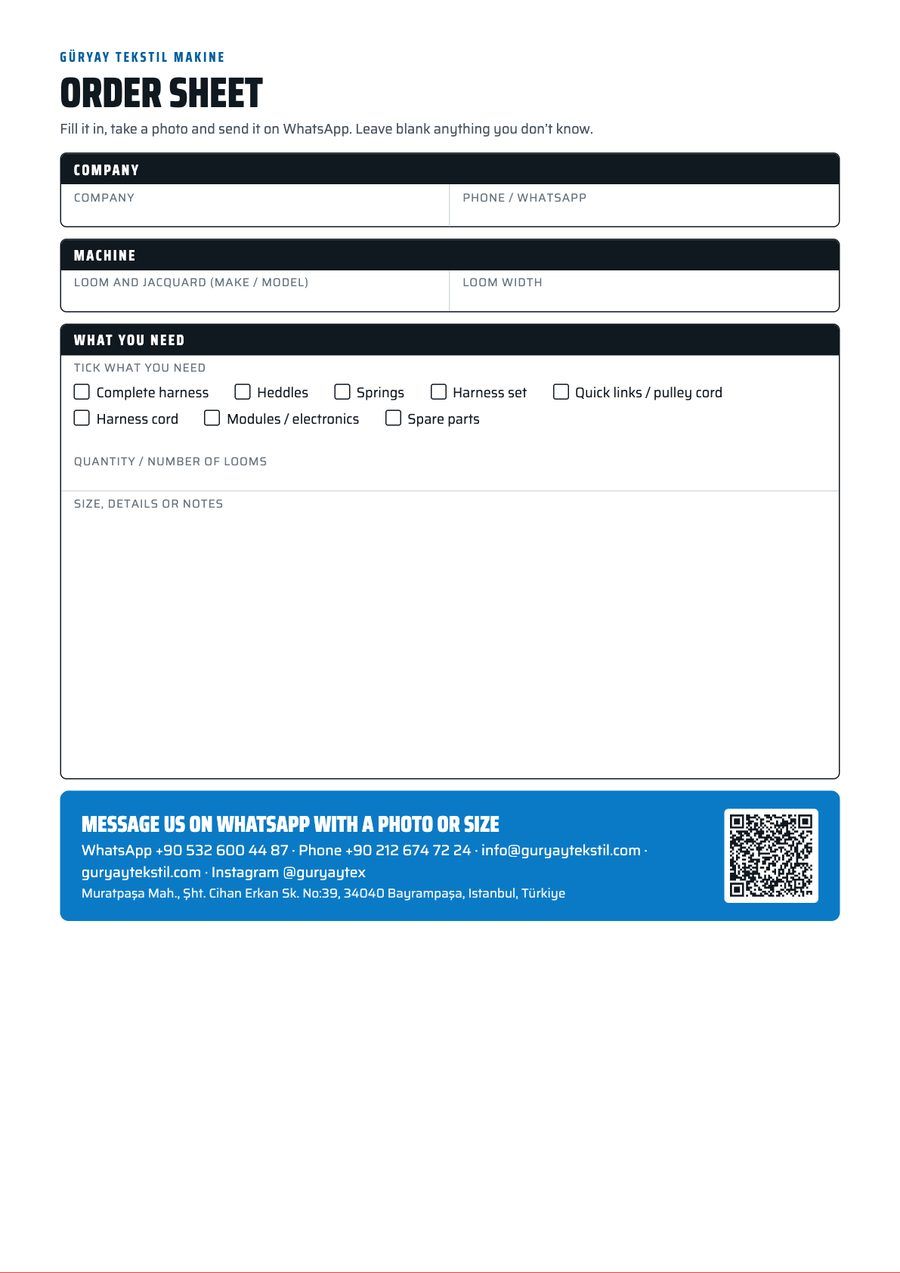

Fill in the order sheet on the last page and send us a photo of it on WhatsApp.
Order from the catalogue
Everything we sell, in one list · 43 product lines

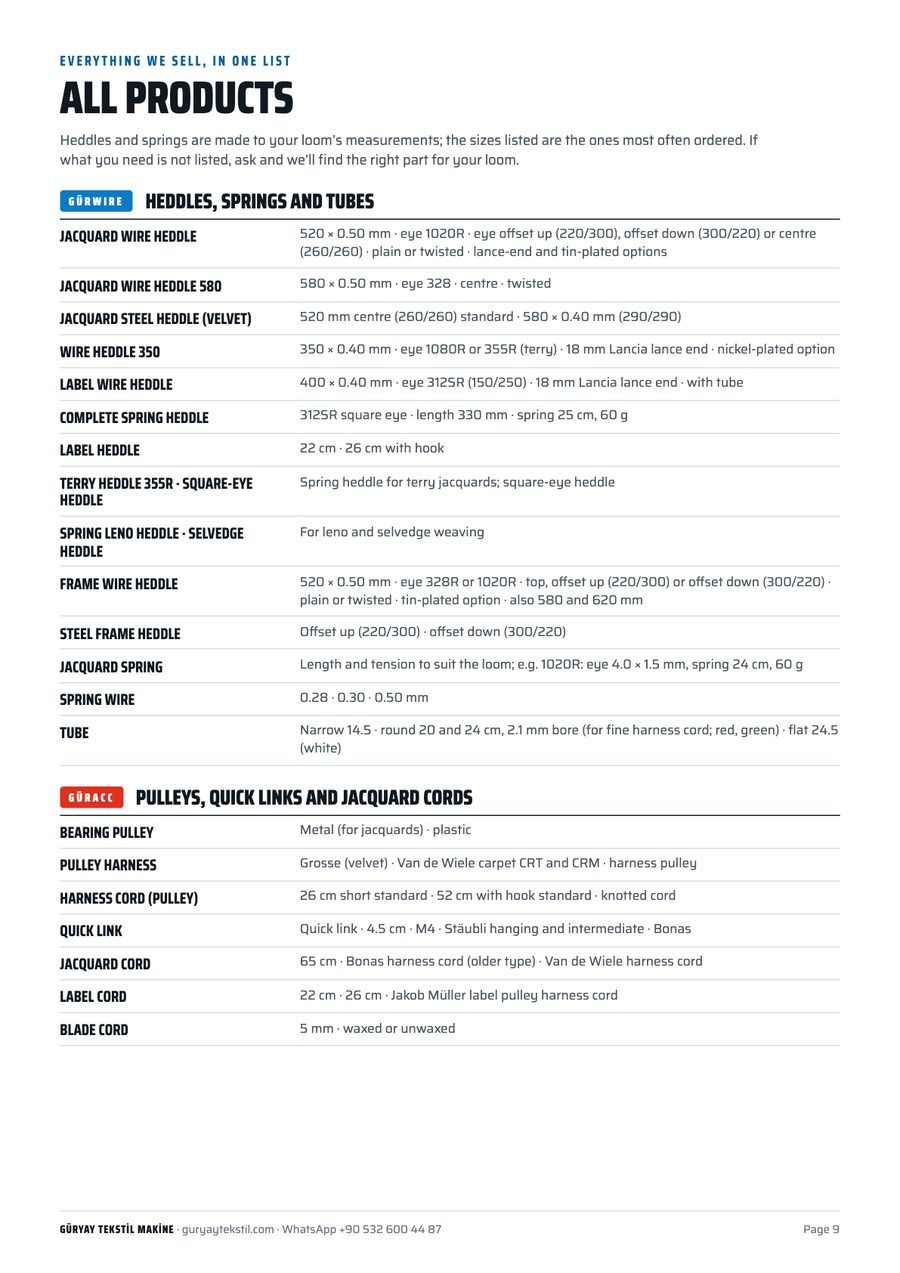

All products
Heddles and springs are made to your loom’s measurements; the sizes listed are the ones most often ordered. If what you need is not listed, ask and we’ll find the right part for your loom.

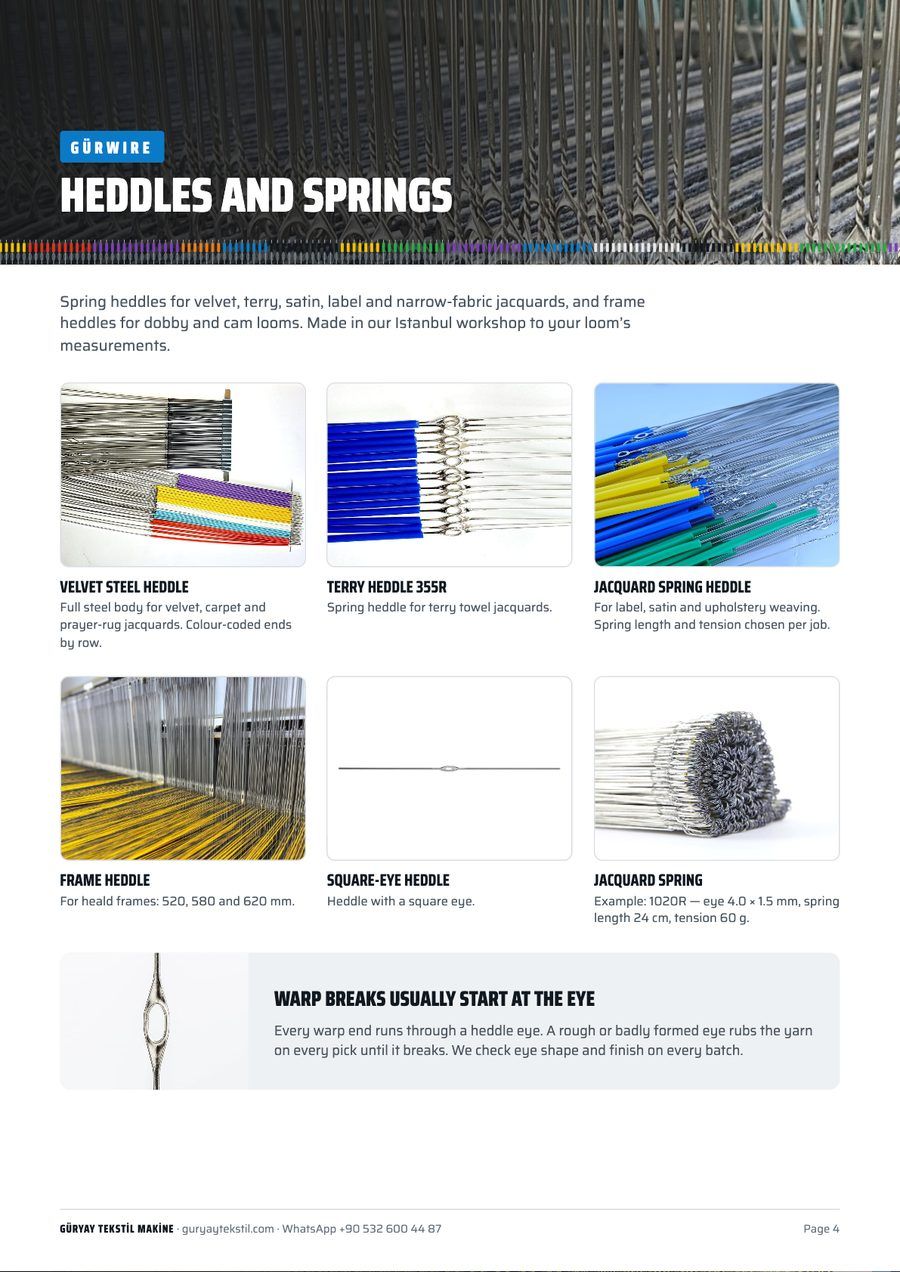

GÜRWIREHeddles, springs and tubes
- Jacquard wire heddle520 × 0.50 mm · eye 1020R · eye offset up (220/300), offset down (300/220) or centre (260/260) · plain or twisted · lance-end and tin-plated optionsAsk
- Jacquard wire heddle 580580 × 0.50 mm · eye 328 · centre · twistedAsk
- Jacquard steel heddle (velvet)520 mm centre (260/260) standard · 580 × 0.40 mm (290/290)Ask
- Wire heddle 350350 × 0.40 mm · eye 1080R or 355R (terry) · 18 mm Lancia lance end · nickel-plated optionAsk
- Label wire heddle400 × 0.40 mm · eye 312SR (150/250) · 18 mm Lancia lance end · with tubeAsk
- Complete spring heddle312SR square eye · length 330 mm · spring 25 cm, 60 gAsk
- Label heddle22 cm · 26 cm with hookAsk
- Terry heddle 355R · square-eye heddleSpring heddle for terry jacquards; square-eye heddleAsk
- Spring leno heddle · selvedge heddleFor leno and selvedge weavingAsk
- Frame wire heddle520 × 0.50 mm · eye 328R or 1020R · top, offset up (220/300) or offset down (300/220) · plain or twisted · tin-plated option · also 580 and 620 mmAsk
- Steel frame heddleOffset up (220/300) · offset down (300/220)Ask
- Jacquard springLength and tension to suit the loom; e.g. 1020R: eye 4.0 × 1.5 mm, spring 24 cm, 60 gAsk
- Spring wire0.28 · 0.30 · 0.50 mmAsk
- TubeNarrow 14.5 · round 20 and 24 cm, 2.1 mm bore (for fine harness cord; red, green) · flat 24.5 (white)Ask

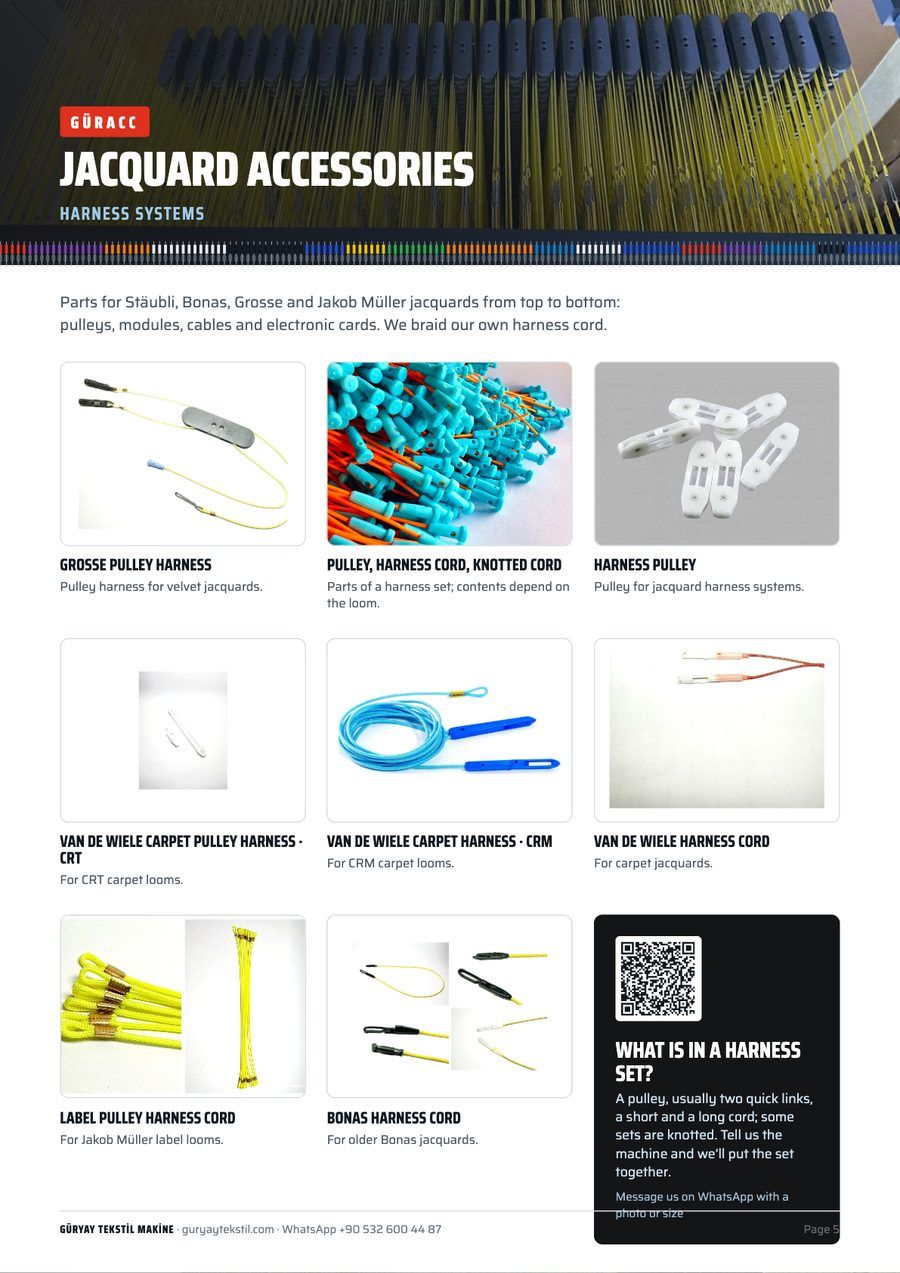

GÜRACCPulleys, quick links and jacquard cords
- Bearing pulleyMetal (for jacquards) · plasticAsk
- Pulley harnessGrosse (velvet) · Van de Wiele carpet CRT and CRM · harness pulleyAsk
- Harness cord (pulley)26 cm short standard · 52 cm with hook standard · knotted cordAsk
- Quick linkQuick link · 4.5 cm · M4 · Stäubli hanging and intermediate · BonasAsk
- Jacquard cord65 cm · Bonas harness cord (older type) · Van de Wiele harness cordAsk
- Label cord22 cm · 26 cm · Jakob Müller label pulley harness cordAsk
- Blade cord5 mm · waxed or unwaxedAsk

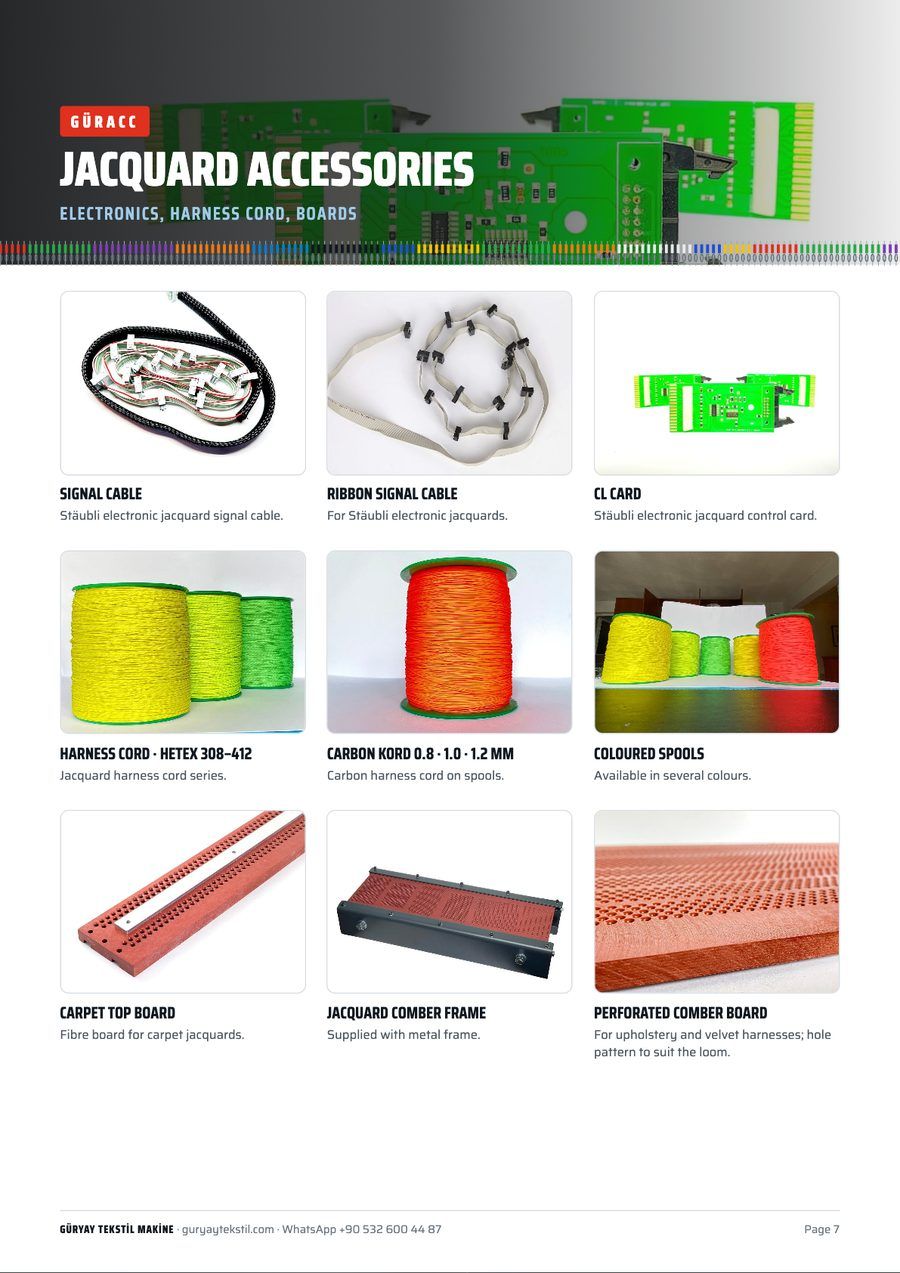

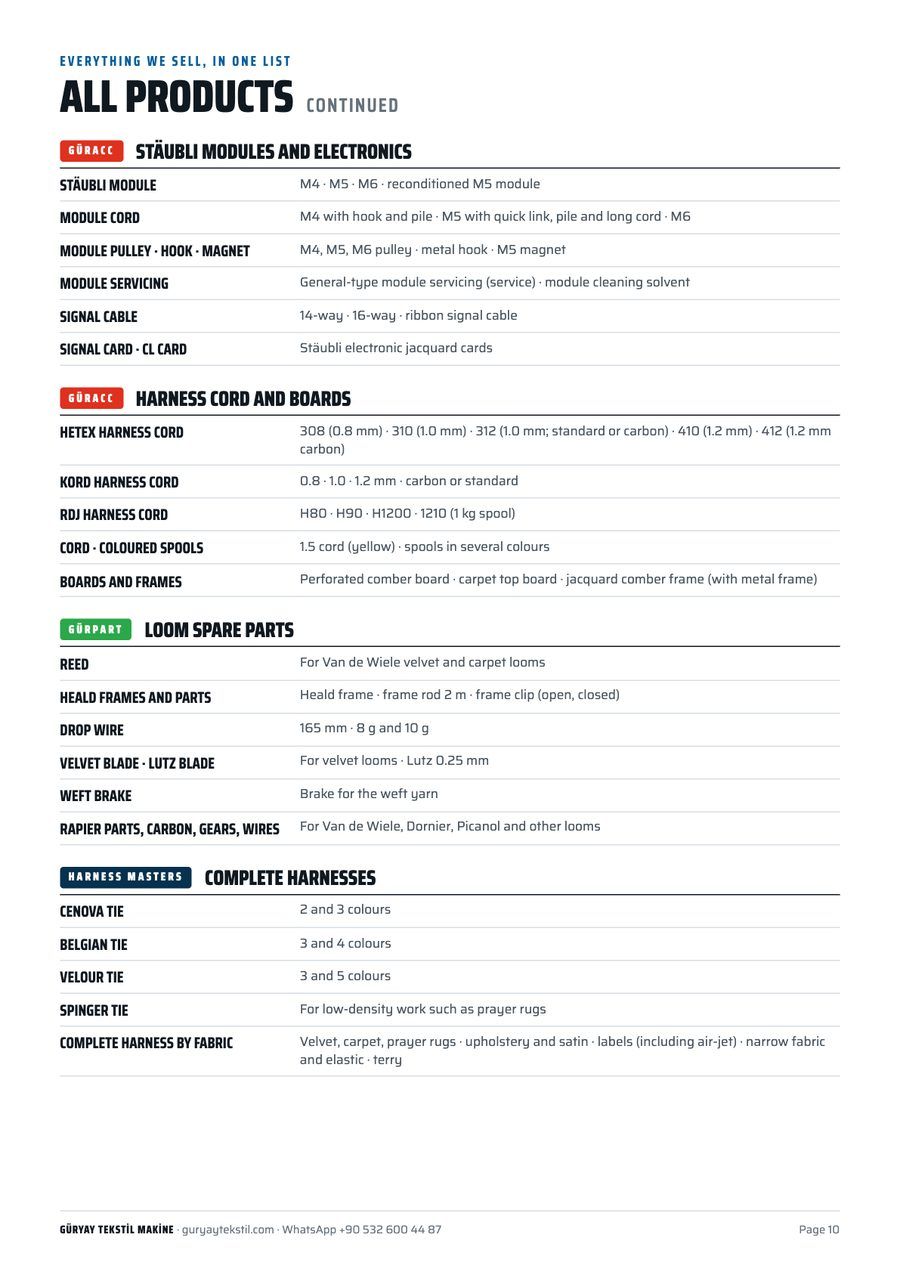

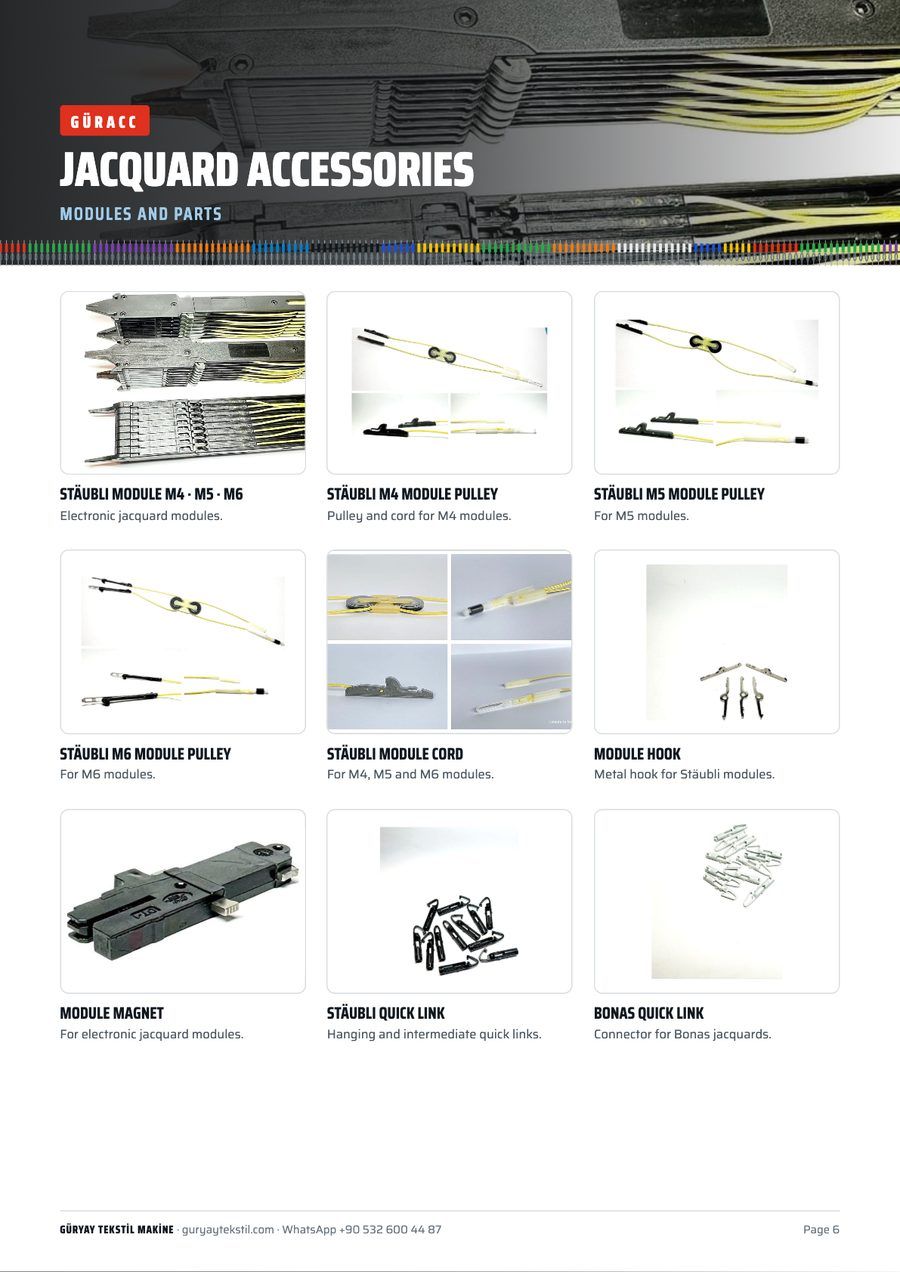

GÜRACCStäubli modules and electronics
- Stäubli moduleM4 · M5 · M6 · reconditioned M5 moduleAsk
- Module cordM4 with hook and pile · M5 with quick link, pile and long cord · M6Ask
- Module pulley · hook · magnetM4, M5, M6 pulley · metal hook · M5 magnetAsk
- Module servicingGeneral-type module servicing (service) · module cleaning solventAsk
- Signal cable14-way · 16-way · ribbon signal cableAsk
- Signal card · CL cardStäubli electronic jacquard cardsAsk
GÜRACCHarness cord and boards
- HETEX harness cord308 (0.8 mm) · 310 (1.0 mm) · 312 (1.0 mm; standard or carbon) · 410 (1.2 mm) · 412 (1.2 mm carbon)Ask
- KORD harness cord0.8 · 1.0 · 1.2 mm · carbon or standardAsk
- RDJ harness cordH80 · H90 · H1200 · 1210 (1 kg spool)Ask
- Cord · coloured spools1.5 cord (yellow) · spools in several coloursAsk
- Boards and framesPerforated comber board · carpet top board · jacquard comber frame (with metal frame)Ask

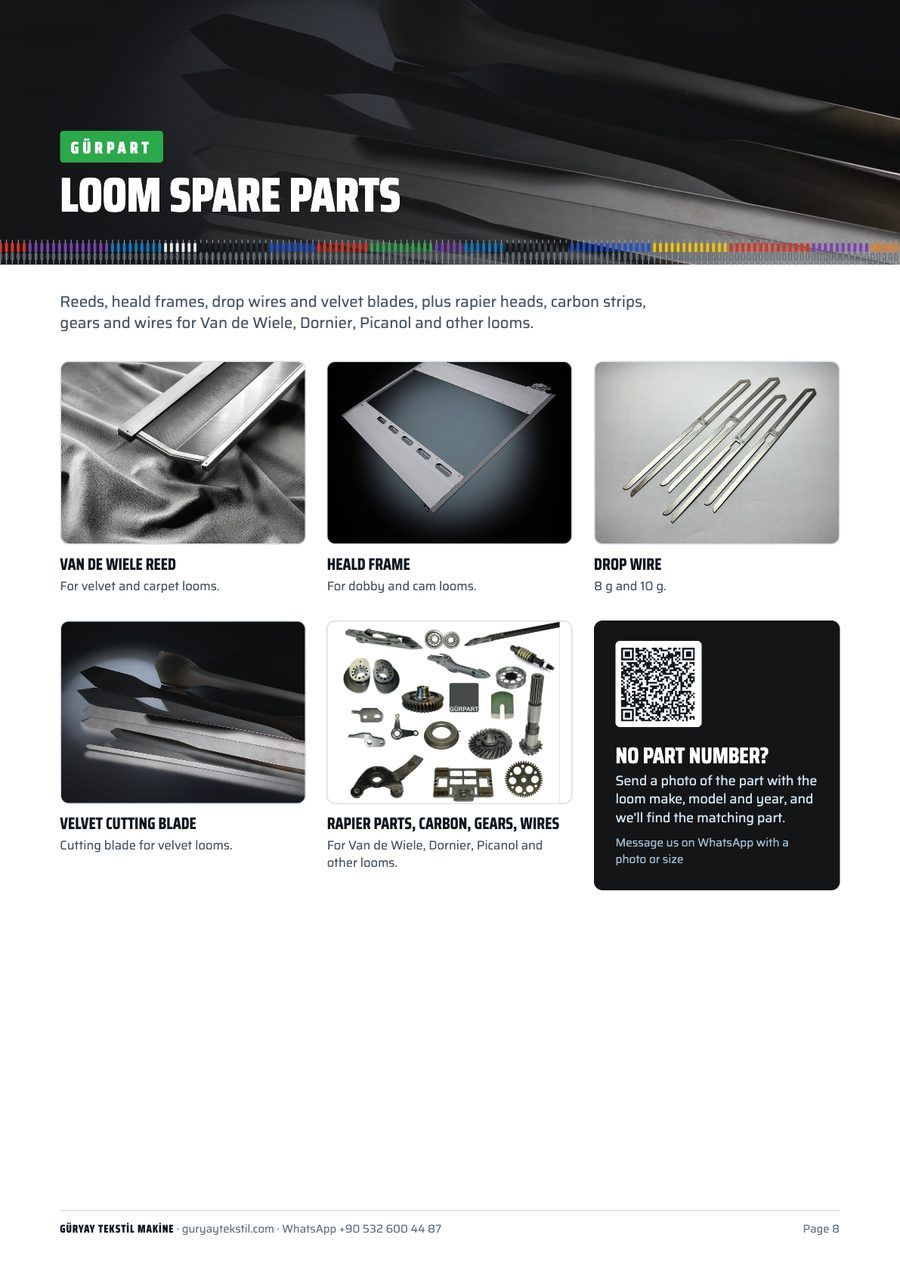

GÜRPARTLoom spare parts
- ReedFor Van de Wiele velvet and carpet loomsAsk
- Heald frames and partsHeald frame · frame rod 2 m · frame clip (open, closed)Ask
- Drop wire165 mm · 8 g and 10 gAsk
- Velvet blade · Lutz bladeFor velvet looms · Lutz 0.25 mmAsk
- Weft brakeBrake for the weft yarnAsk
- Rapier parts, carbon, gears, wiresFor Van de Wiele, Dornier, Picanol and other loomsAsk
HARNESS MASTERSComplete harnesses
Nothing found. Message us on WhatsApp and we’ll find the right part for your loom.
Do you have a price list?
Prices depend on size, material and quantity, so we quote instead. Add the quantity to your message and we’ll quote for it.
I don’t know the size of the old part.
Send a photo. We’ll pin down the size together and make a sample if needed.
Can I get a sample?
Yes. If needed we make a sample first; you try it on the loom and we start the order once you approve.
